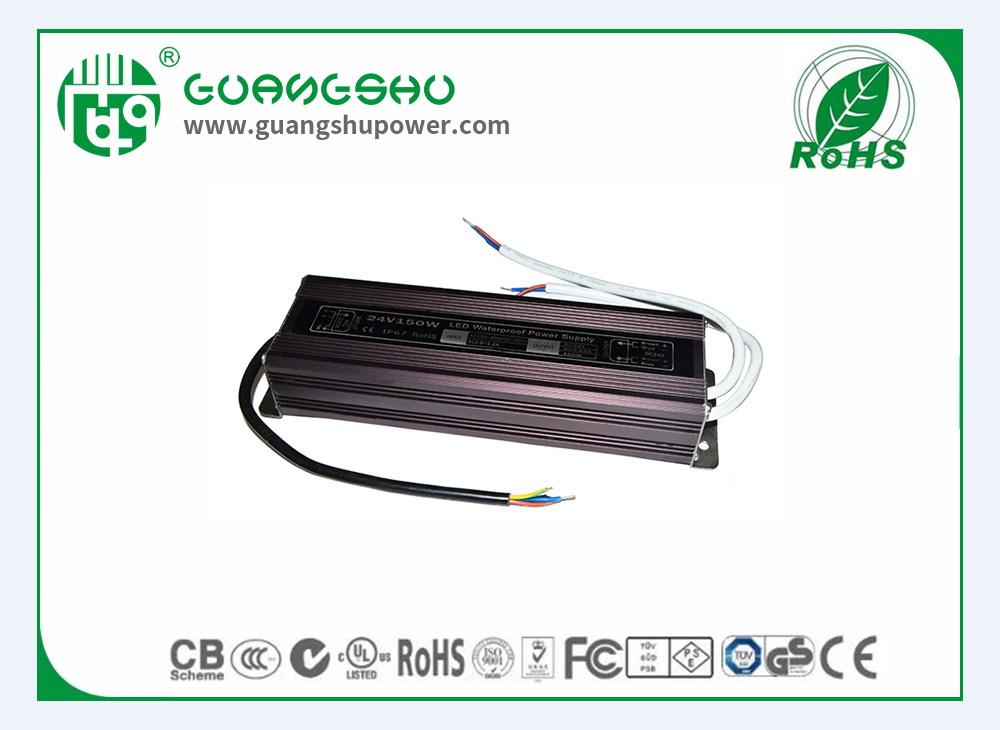

LED Power Supply 150W

Universal input voltage

Short circuit protection

Level VI Efficiency Regulations Compliance

Super Mini Size and Easy Portable

High efficiency & reliability

Outputs are available at request

Optional output connectors

Three year limited warranty

Inquiry

Product Description

Input Voltage: 100~240V AC 50~60Hz

Input current: 2.0A Max.

Output Voltage:5-57V

Output current:0.50-40.0A

Ripple: 1% peak to peak maximum

Over voltage protection & Over current protection & Over Temperature protection & Short circuit protection.

Temperature coefficient: All out+-0.04%℃ maximum

Transient response:Maximum excursion of 4% or better on all models.Recovering to 1% of final value within 500uS after a 25% step load change.

Operating temperature:0℃~+40℃.

Storage temperature:-40℃~+85℃;.

Relative humidity:5% to 95% non-condensing.

Setup up / Hold up / Rise time:Typical: 3000mS / 16mS / 50mS at full load.

Line regulation:+-1% maximum for any input voltage change between input voltage range

Load regulation:+-5%variations from minimum to maximum output current.

Insulation resistance:50Mohm minimum from output to ground.

Withstand voltage:4300VDC from input to output

Mean time between failure:100,000 hours minimum at full load 25℃ ambient

Energy Saving (Level VI / Level 6)

EMC requirements:EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3

Safety requirements:EN 61347-2-13, EN 61347-1,EN60598-1,EN60598-2-1

Warranty: 3- Years.
