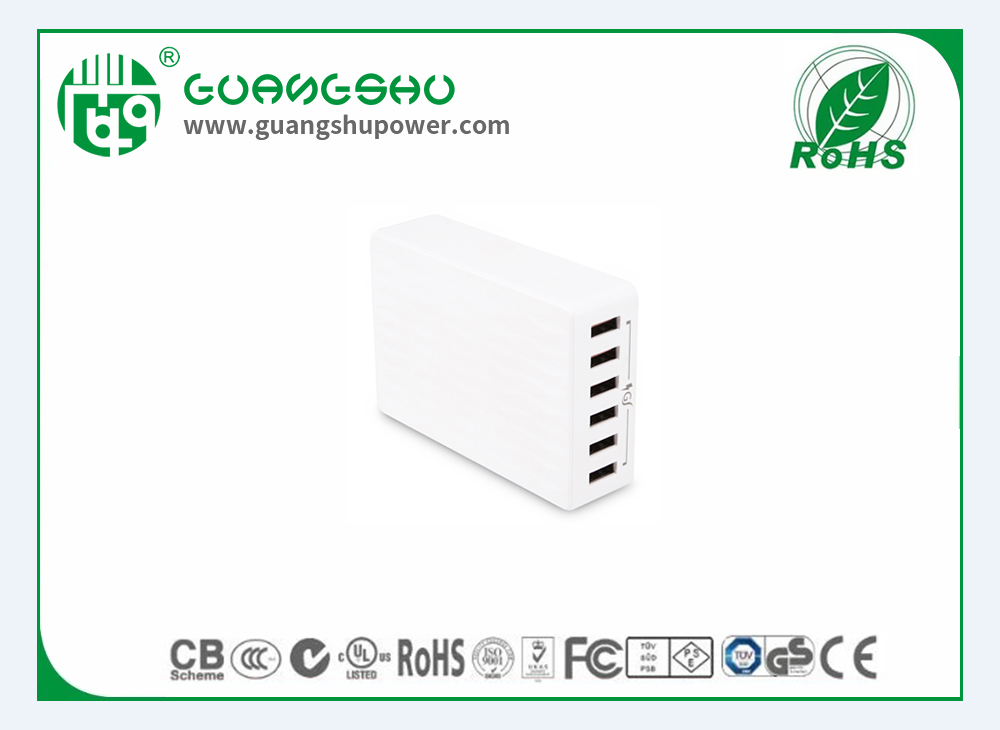

60W 6USB charger

Universal input voltage

Level VI Efficiency Regulations Compliance

Super Mini Size and Easy Portable

High efficiency & reliability

Outputs are available at request

Constant Current For Battery Charge

Multiple USB output

Can meet multiple devices at the same time

Three year limited warranty

9Inquiry

Product Description

Input Voltage: 100~240V AC 50~60Hz

Input connector: IEC320 / C8

Output Voltage:5V 12.0A(Max. 2.4A each port)

Output connector: 6 USB

Protection: Over voltage protection & Over current protection & Over Temperature protection & Short circuit protection & Reverse polarity protection.

Temperature coefficient: All out+-0.04%℃ maximum

Transient response:Maximum excursion of 4% or better on all models.Recovering to 1% of final value within 500uS after a 25% step load change.

Operating temperature:0℃~+40℃.

Storage temperature:-40℃~+85℃;.

Relative humidity:5% to 95% non-condensing.

Insulation resistance:50Mohm minimum from output to ground.

Withstand voltage:4300VDC from input to output

Mean time between failure:100,000 hours minimum at full load 25℃ ambient

Energy Saving (Level VI / Level 6)

EMC requirements:FCC CLASS B, EN55022 CLASS B.EN 55024: 1998+A1: 2001+A2: 2003; Part 15 Subpart B, IC ICES-003

Safety requirements:UL 60950-1: 2007,EN 55022:55024/EN 60950-1/EN 61558-1/EN 61558-2-16,EN 60950-1/EN 61558-1/EN 61558-2-16/AfPS GS 214,AS/NZS 60950-1:2011& AS/NZS 3112:2011.

Warranty: 3- Years.
